Glossary of EM.Cube's Standard Geometric Objects
Solid Objects
Box Tool
ICON:
Menu → Object → Solid → Box

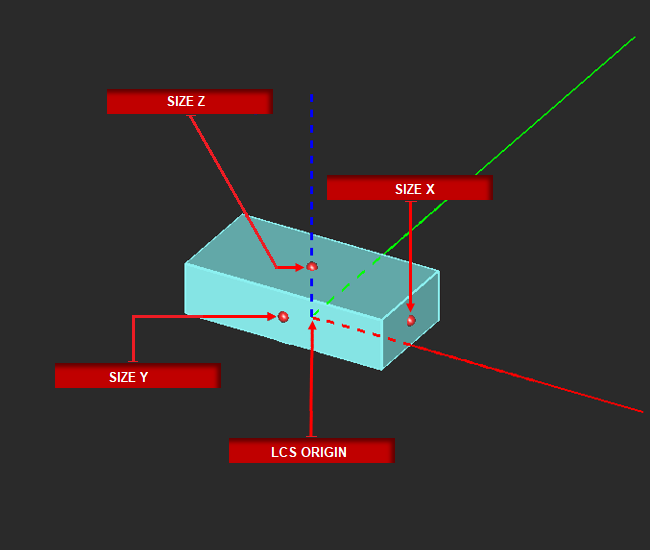

TO DRAW A BOX:
- Activate the Box Tool.
- Left-click to establish the first bottom vertex.
- Drag the mouse away from the first vertex to establish the desired base plane area. Left-click a second time to establish the opposite bottom vertex.
- Drag the mouse up and away from the base plane to set the desired height. Left-click a third time to complete the box.
PYTHON COMMAND: box(label,x0,y0,z0,base_x,base_y,height[,cap_top,cap_bottom])
BOX PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| size_X | real numeric | project units | - | dimension along X-axis |
| size_Y | real numeric | project units | - | dimension along Y-axis |
| size_Z | real numeric | project units | - | dimension along Z-axis |
| fix_center_X | Boolean | - | TRUE | fixes X-coordinate of base |
| fix_center_Y | Boolean | - | TRUE | fixes Y-coordinate of base |
| cap_top | Boolean | - | TRUE | places a cap at top |
| cap_bottom | Boolean | - | TRUE | places a cap at bottom base |
Cylinder Tool
Menu → Object → Solid → Cylinder

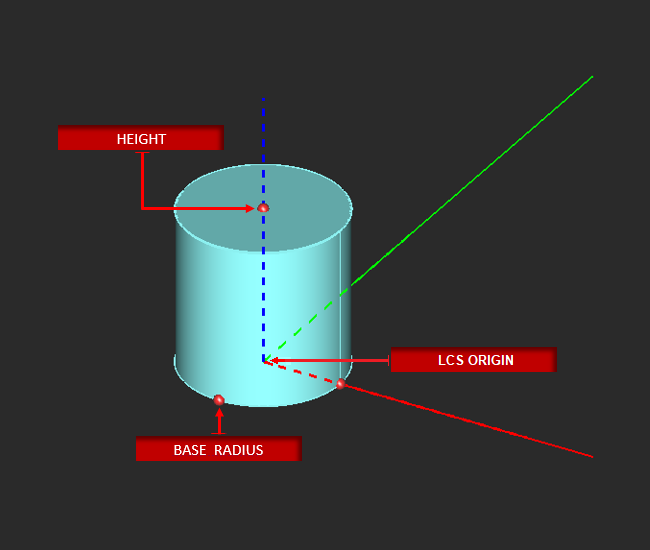

TO DRAW A CYLINDER:
- Activate the Cylinder Tool.
- Left-click to establish the center of the bottom base.
- Drag the mouse away from the origin to create the desired base radius. Left-click a second time to establish the cylinder's base.
- Drag the mouse up and away from the active work plane to establish the cylinder's height. Left-click a third time to complete the cylinder.
PYTHON COMMAND: cylinder(label,x0,y0,z0,radius,height[,start_angle,end_angle,cap_top,cap_bottom])
CYLINDER PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| base_radius | real numeric | project units | - | - |
| height | real numeric | project units | - | - |

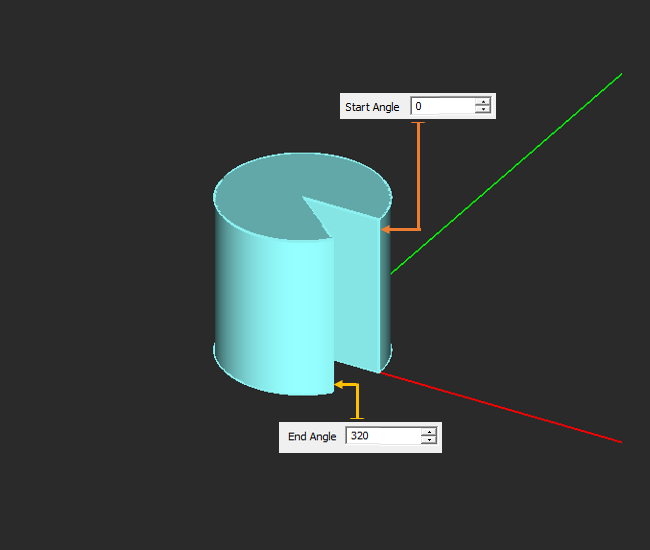

| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
| cap_top | Boolean | - | TRUE | places a cap at top |
| cap_bottom | Boolean | - | TRUE | places a cap at bottom base |

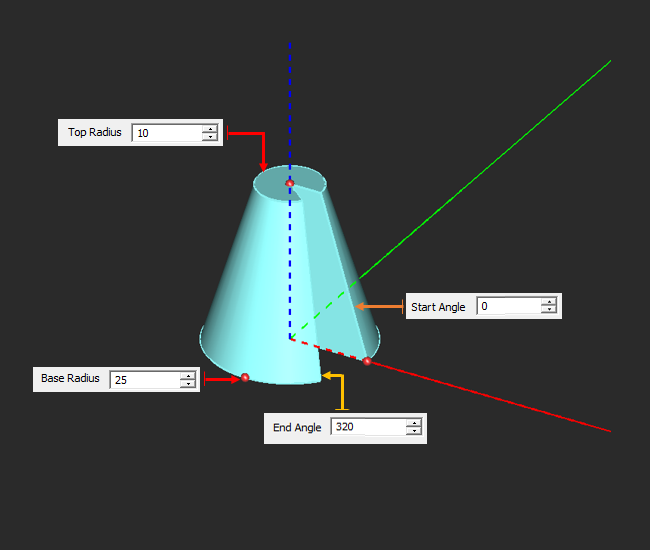

Cone Tool
Menu → Object → Solid → Cone

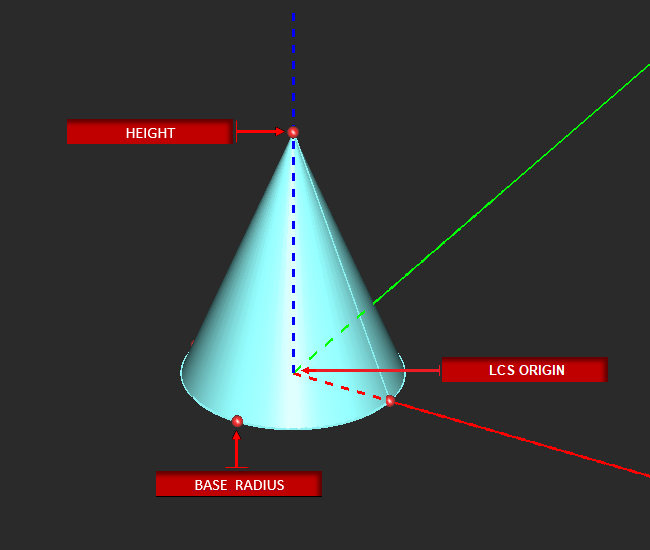

TO DRAW A CONE:
- Activate the Cone Tool.
- Left-click to establish the cone's base plane origin.
- Drag away from the origin to define the base plane's radius. Left-click a second time to define the base plane.
- Drag the mouse away from the base plane to establish the height. Left-click a third time to complete the cone.
PYTHON COMMAND: cone(label,x0,y0,z0,base_radius,height[,top_radius,start_angle,end_angle,cap_top,cap_bottom])
CONE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| base_radius | real numeric | project units | - | - |
| top_radius | real numeric | project units | 0 | - |
| height | real numeric | project units | - | - |
| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
| cap_top | Boolean | - | TRUE | places a cap at top |
| cap_bottom | Boolean | - | TRUE | places a cap at bottom base |

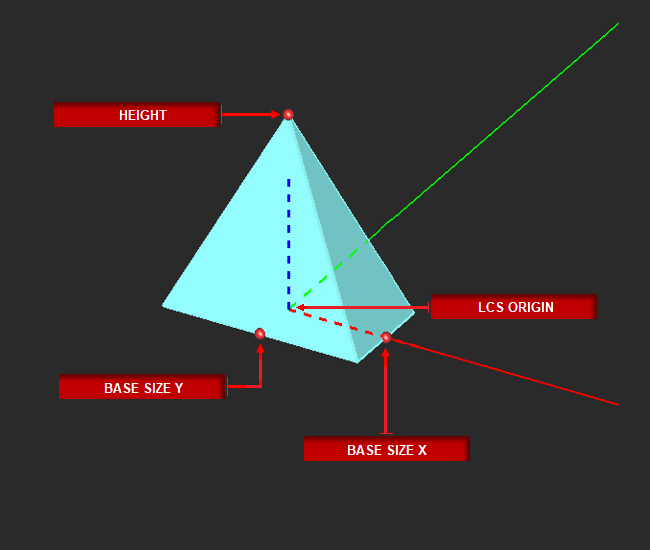

Pyramid Tool
Menu → Object → Solid → Pyramid

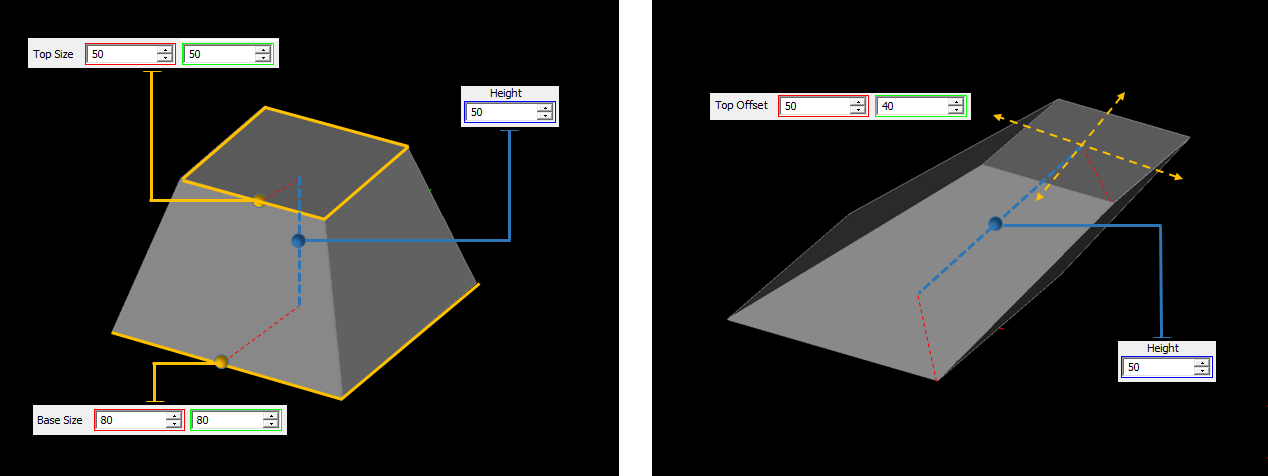

TO DRAW A PYRAMID:
- Activate the Pyramid Tool.
- Left-click to establish the first point of the rectangular base plane.
- Define the desired area of the base plane by dragging the mouse away from the first point. Left-click a second time to establish the base plane.
- Drag the mouse away from the base plane to establish the desired height. Left-click a third time to complete the pyramid.
PYTHON COMMAND: pyramid(label,x0,y0,z0,base_x,base_y,height[,top_x,top_y,cap_top,cap_bottom])
PYRAMID PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| base_size_X | real numeric | project units | - | - |
| base_size_Y | real numeric | project units | - | - |
| top_size_X | real numeric | project units | 0 | - |
| top_size_Y | real numeric | project units | 0 | - |
| height | real numeric | project units | - | - |
| top_offset_X | real numeric | project units | 0 | - |
| top_offset_Y | real numeric | project units | 0 | - |
| fix_center_X | Boolean | - | TRUE | fixes X-coordinate of base |
| fix_center_Y | Boolean | - | TRUE | fixes Y-coordinate of base |
| cap_top | Boolean | - | TRUE | places a cap at top |
| cap_bottom | Boolean | - | TRUE | places a cap at bottom base |
Sphere Tool
Menu → Object → Solid → Sphere

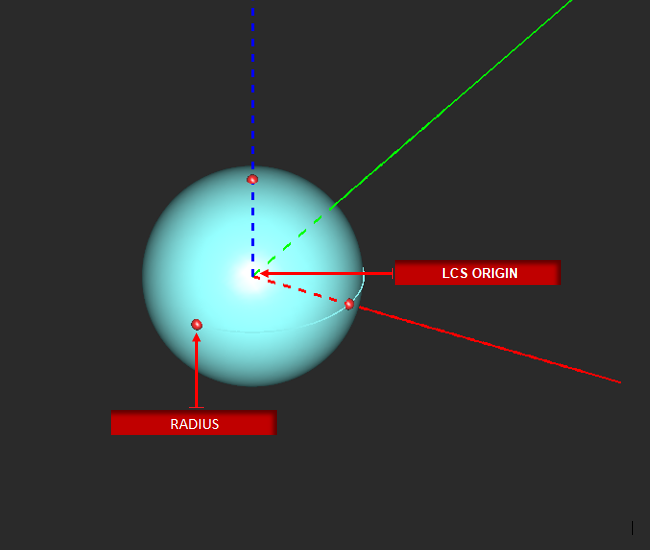

TO DRAW A SPHERE:
- Activate the Sphere Tool.
- Left-click to establish the origin point. Drag the mouse outward from the origin to establish the radius.
- Left-click a second time to complete the sphere.
PYTHON COMMAND: sphere(label,x0,y0,z0,radius[,start_angle,end_angle])
SPHERE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius | real numeric | project units | - | - |

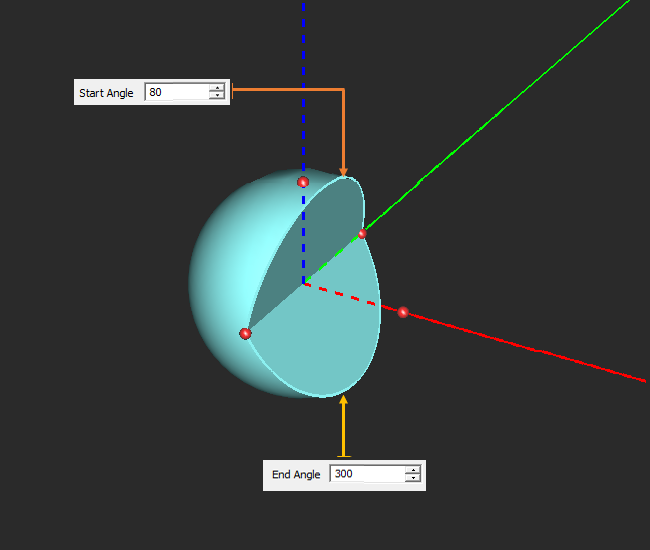

| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
Ellipsoid Tool
Menu → Object → Solid → Ellipsoid

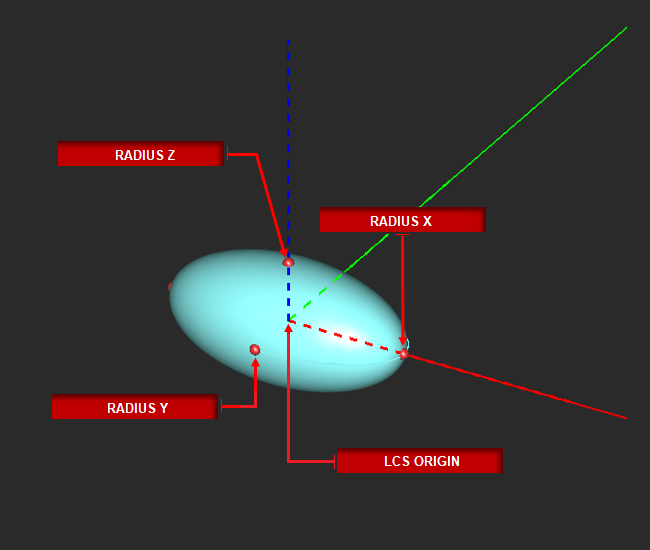

TO DRAW AN ELLIPSOID:
- Activate the Ellipsoid Tool.
- Left-click to define the first X-radius anchor point.
- Drag the mouse to the desired length. left-click a second time to define the ending X-radius anchor point.
- Drag the mouse away from the X radius to establish the desired Y-radius. Left-click a third time to define the Y radius.
- Drag the mouse away from the active plane to define the Z radius. Left-click a fourth time to complete the ellipsoid.
PYTHON COMMAND: ellipsoid(label,x0,y0,z0,radius_x,radius_y,radius_z[,start_angle,end_angle])
ELLIPSOID PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius_X | real numeric | project units | - | - |
| radius_Y | real numeric | project units | - | - |
| radius_Z | real numeric | project units | - | - |

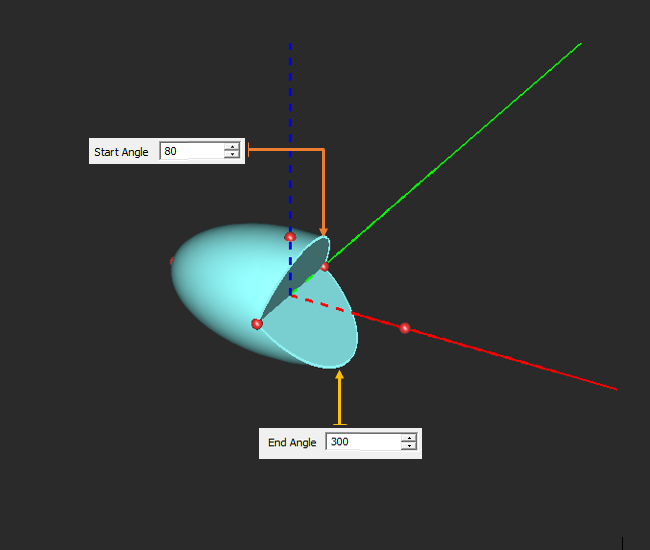

| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
Torus Tool
Menu → Object → Solid → Torus

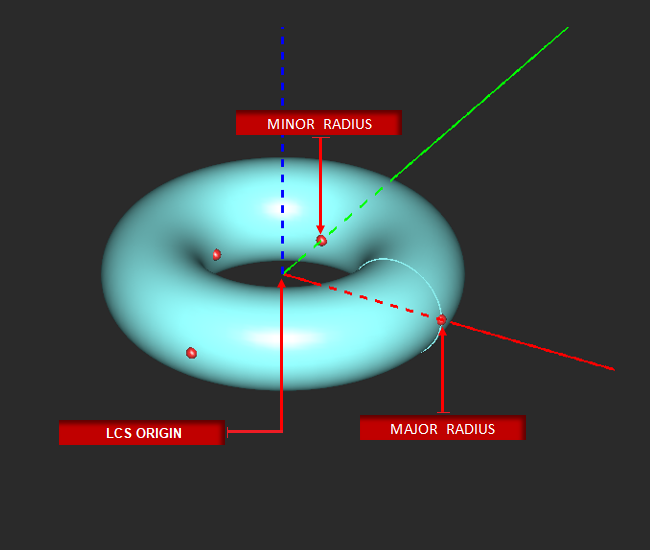

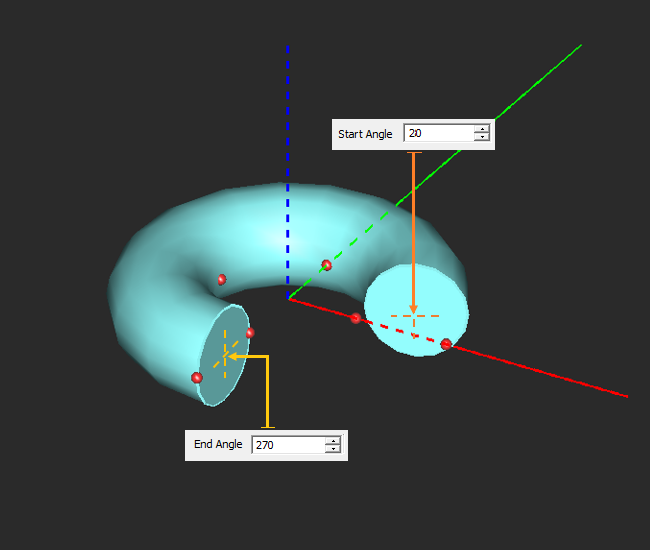

TO DRAW A TORUS:
- Activate the Torus Tool.
- Left-click to define the center point.
- Drag the mouse away from the origin and left-click a second time to establish the Major Radius of the torus.
- Drag the mouse away from the Major Radius construction path to establish the Minor Radius. Left-click a third time to complete the torus.
PYTHON COMMAND: torus(label,x0,y0,z0,radius_major,radius_minor[,start_angle,end_angle])
TORUS PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| major_radius | real numeric | project units | - | - |
| minor_radius | real numeric | project units | - | - |
| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
Generating Platonic Solids
Besides EM.Cube's standard solid objects, i.e. box, cylinder, cone, pyramid, sphere, ellipsoid, and torus, you can use Solid Generator
to create five types of Platonic solid objects:
- Tetrahedron
- Hexahedron
- Octahedron
- Dodecahedron
- Icosahedron
A icosahedron with side length 20 (scale = 10).
- Click the Solid Generator
button of the Object Toolbar or select Menu
Object Solid Solid Generator to open the Solid Generator Dialog.
- Select one of the five platonic solid types Tetrahedron, Hexahedron Octahedron, Dodecahedron, or Icosahedron.
- The dialog shows the number of faces, edges, nodes and the side length of the standard platonic solid of the selected type. Specify the Scale based on the displayed Side Length.
- Before you create the solid and add it to the Navigation Tree, you have an opportunity to preview it. To do so, click the Preview button of the dialog. A yellow ghost of the solid appears in the Project Workspace. You can change the range or modify the function at this time. Once you are satisfied with the generated solid, click the Create to finalize its creation and add it to the list of object on the Navigation Tree.
Surface Objects
Rectangle Strip Tool
Menu → Object → Surface → Rectangle Strip

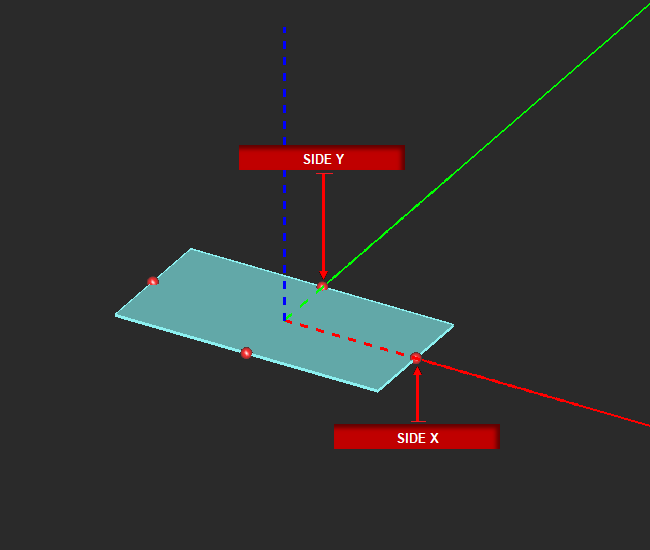

TO DRAW A RECTANGLE STRIP:
- Activate the Rectangle Strip Tool.
- Left-click to establish the X/Y axial triangulation point.
- Drag the mouse outward from this point to define the desired area of the rectangle strip. Left-click a second time to complete the shape.
PYTHON COMMAND: rect_strip(label,x0,y0,z0,side_x,side_y)
RECTANGLE STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| side_X | real numeric | project units | - | dimension along X-axis |
| side_Y | real numeric | project units | - | dimension along Y-axis |
| fix_center_X | Boolean | - | TRUE | fixes X-coordinate of base |
| fix_center_Y | Boolean | - | TRUE | fixes Y-coordinate of base |
| rect_loop | Boolean | - | FALSE | if TRUE, creates a rectangular loop |
| loop_width | real numeric | project units | - | - |

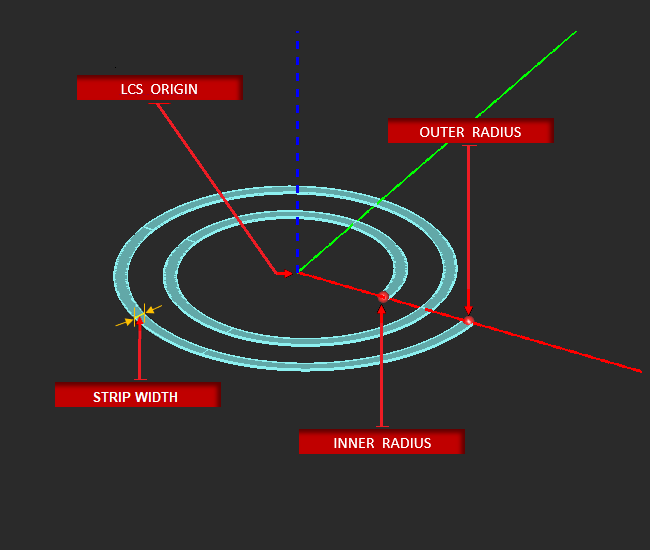

Circle Strip Tool
Menu → Objects → Surfaces → Circle Strip

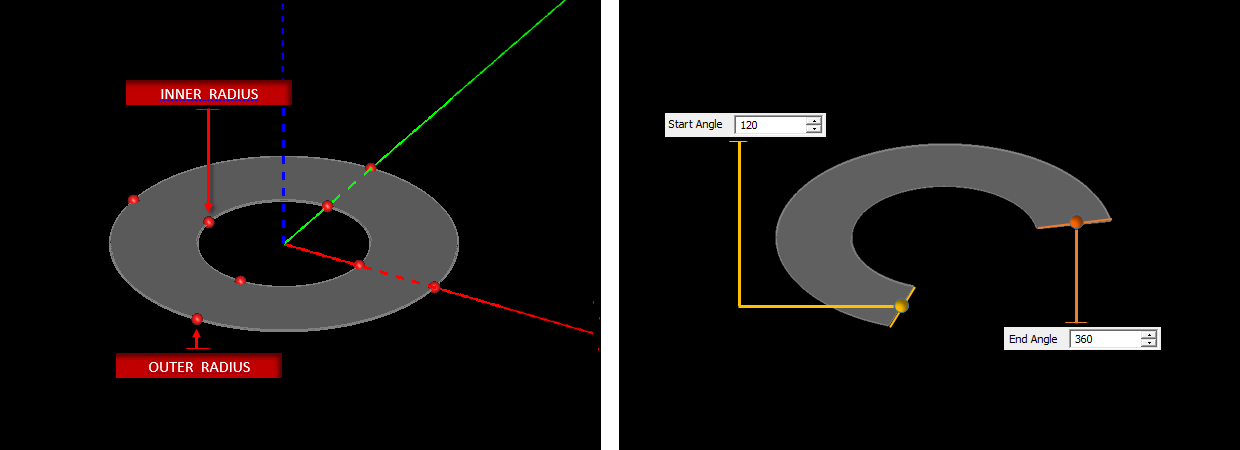

TO DRAW A CIRCLE STRIP:
- Activate the Circle Strip Tool.
- Left-click to define the origin
- Drag the mouse away from the origin to establish the desired radius. Left-click a second time to complete the circle strip.
PYTHON COMMAND: circ_strip(label,x0,y0,z0,outer_radius,inner_radius[,start_angle,end_angle])
CIRCLE STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| outer_radius | real numeric | project units | - | circle's outer radius |
| inner_radius | real numeric | project units | 0 | inner radius creating a ring object |
| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |

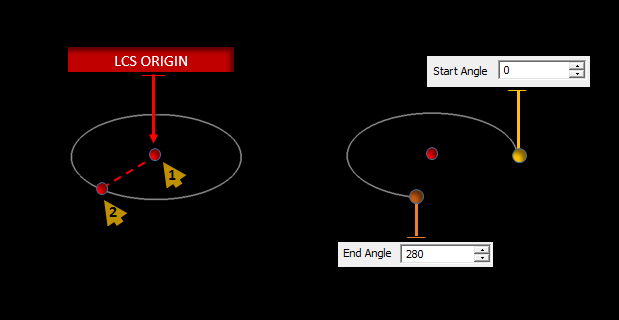

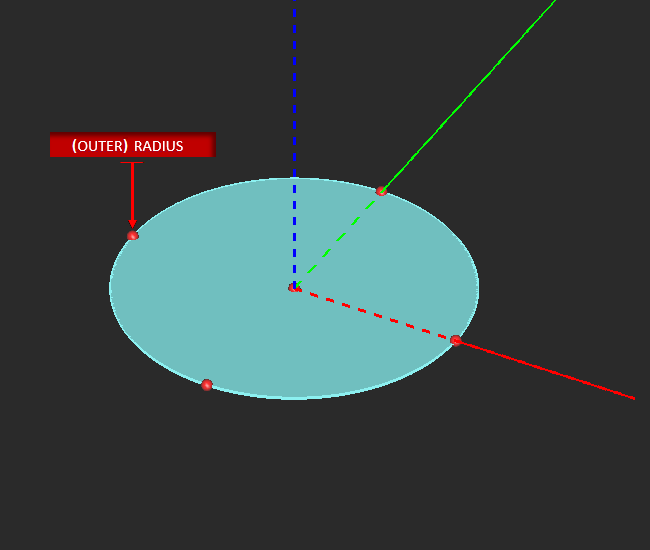

Start Angle and End Angle defines the area around the z-axis that will be drawn. The default value for both the Start and End angle parameters is 0.
The X, Y, Z LCS coordinates originate at the CIRCLE STRIP’s center.
Radial Strip Tool
Menu → Object → Surface → Radial Strip
TO DRAW A RADIAL STRIP:
- Activate the Radial Strip Tool.
- Left-click to establish the origin point.
- Drag the mouse away from origin and left-click a second time to establish the radius and the first leg of the radial strip.
- Drag the mouse to the desired location to define the angle of the radial strip. Left-click a third time to complete the radial strip.
PYTHON COMMAND: radial_strip(label,x0,y0,z0,radius,base_lenght,angle)
RADIAL STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius | real numeric | project units | - | - |
| base_length | real numeric | project units | 0 | A nonzero value creates a flattened base |
| angle | real numeric | degrees | - | wedge angle |
DIALOG PROPERTIES

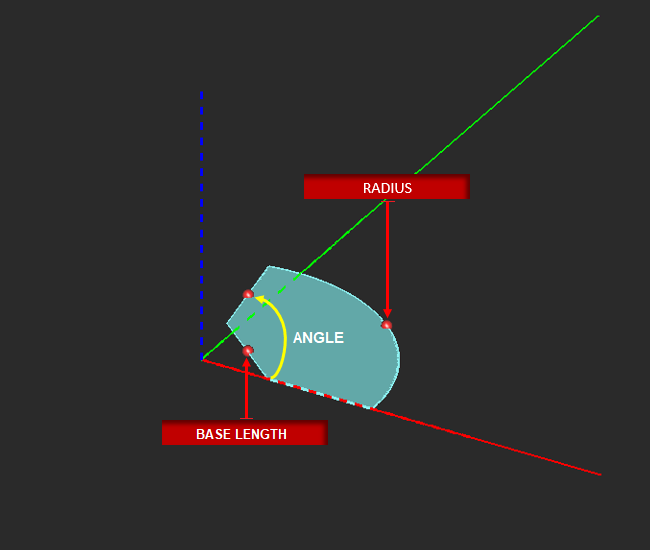

Radius establishes the circumference of the radial strip. Angle defines the distance between the first leg and second leg of the radial strip. Base Length es

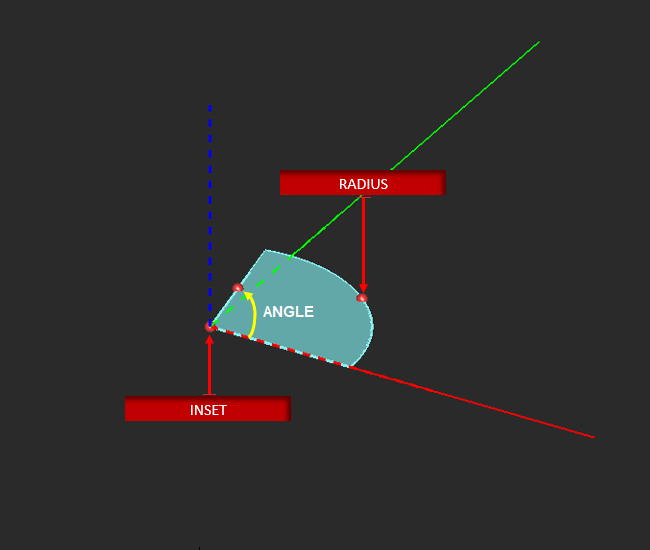

Base Length establishes an inset amount measured outward from the origin.
Ellipse Strip Tool
Menu → Object → Surface → Ellipse Strip
TO DRAW AN ELLIPSE STRIP:
- Activate the Ellipse Strip Tool.
- Left-click to establish the X/Y axis origin.
- Drag the mouse away from the origin to the desired location. Left-click a second time to create the ellipse.
PYTHON COMMAND: ellipse_strip(label,x0,y0,z0,radius_x,radius_y[,start_angle,end_angle])
ELLIPSE STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius_X | real numeric | project units | - | radius along X-axis |
| radius_Y | real numeric | project units | - | radius along Y-axis |
| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
| fix_center_X | Boolean | - | TRUE | fixes X-coordinate of base |
| fix_center_Y | Boolean | - | TRUE | fixes Y-coordinate of base |
DIALOG PARAMETERS

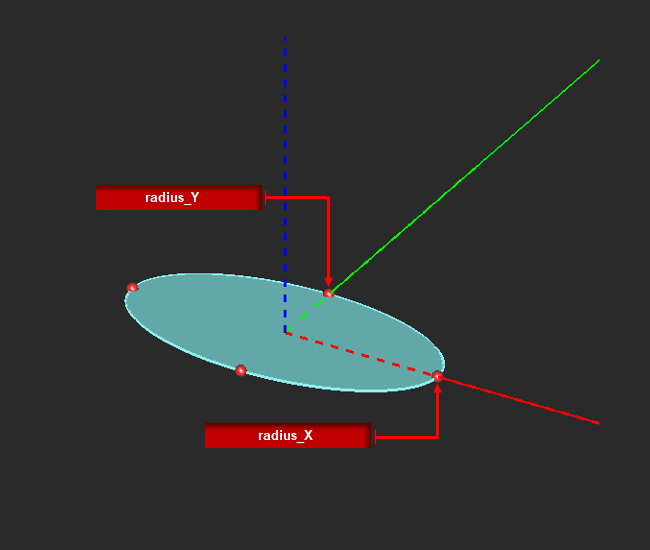

X Diameter and Y Diameter together establish the area of the Ellipse Strip. Lock Base anchors the Ellipse Strip's LCS origin to its current location. The diagram below illustrates how the Lock Base option controls parameter changes made to the X and Y diameter.
Start Angle and End Angle defines the area around the z-axis that will be drawn. The default value for both the Start and End angle parameters is 0.
Triangle Strip Tool
Menu → Object → Surface → Triangle Strip
TO DRAW A TRIANGLE STRIP:
- Activate the Triangle Strip Tool.
- Left-click to establish the triangles origin.
- Drag away from the origin and left-click a second time to define Leg 1 of the triangle.
- Drag away from leg 1, left-click a third time to define Leg 2 and complete the triangle.
PYTHON COMMAND: triangle_strip(label,x0,y0,z0,side1,side2,angle)
TRIANGLE STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| side_1 | real numeric | project units | - | - |
| side_2 | real numeric | project units | 0 | - |
| angle | real numeric | degrees | - | wedge angle |
DIALOG PARAMETERS

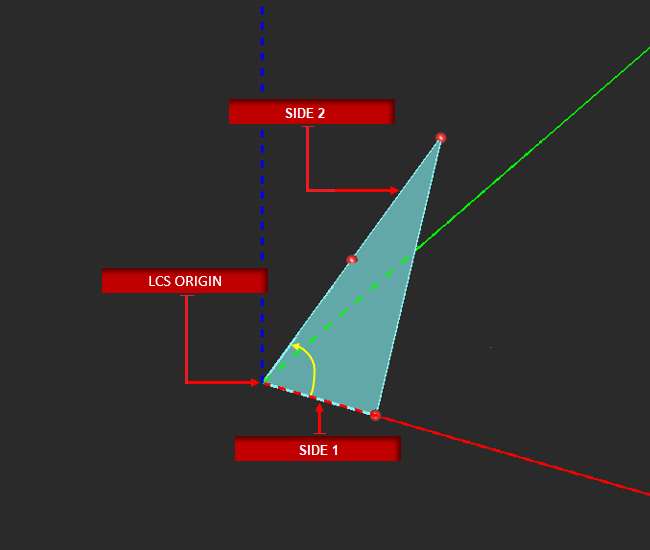

Side 1 establish the length of first leg of the triangle. Side 2 establishes the length of the second leg of the triangle Angle defines the opening angle of the origin vertex (the angle between leg one and leg two).
RIGHT ANGLE TRIANGLES
To create a right angle triangle, hold down the ALT key while left-clicking to define Leg 2 (option "A" in the diagram below).
CONSTRAIN ANGLE DRAWING TO 15º INCREMENTS
Hold down the SHIFT key while positioning the third point of the triangle to constrain the origin angle to 15º increments (option "B" in the diagram below).
CONGRUENT LEG LENGTH AND EQUILATERAL TRIANGLES
You can force both legs of a triangle to be the same length by holding down the CTRL key while drawing the third and final point of the triangle. Use this technique to create an equilateral triangle by drawing a triangle with congruent leg length (as outlined above and illustrated in option "C" below) and setting the angle in the properties dialog to 60º.
Taper Strip Tool
Menu → Object → Surface → Taper Strip
TO DRAW A TAPER STRIP:
- Activate the Taper Strip Tool.
- Left-click to establish the base length midpoint.
- Drag outward from this point to define the desired length and angle of the base side. Left-click a second time to define the base.
- To establish the height, drag the mouse away from the base to the desired location. Left-click a third time to complete the Taper Strip.
PYTHON COMMAND: taper_strip(label,x0,y0,z0,base_width,top_width,length,is_expo)
TAPER STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| base_width | real numeric | project units | - | - |
| taper_length | real numeric | project units | - | - |
| top_width | real numeric | project units | - | - |
| top_offset | real numeric | project units | 0 | A zero value creates an isosceles triangle |
| exponential | Boolean | - | FALSE | creates an exponential taper transition |
| create-half | Boolean | - | FALSE | keeps left half of taper strip only |
DIALOG PROPERTIES
Base Length defines the length of the taper strip's base. Top Length defines the length of the taper strip's top. Height establishes the distance between the base and top curves. Exponential creates blended or curved sidewalls rather than linear sidewalls. This option is off by default.

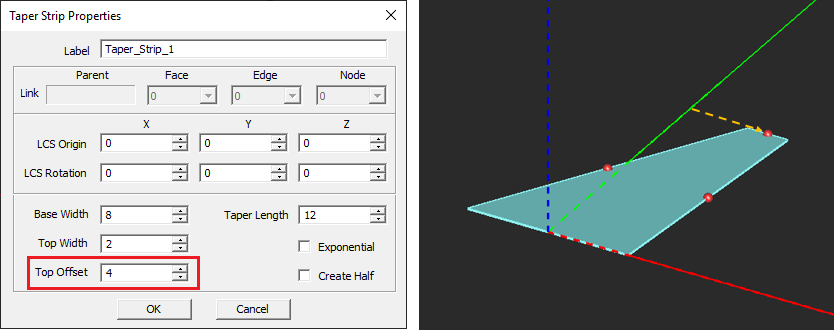

Offset skews the taper strip by negative or positive amount. The default value is 0.
NOTE that Offset is not available when Exponential blending is active.
Regular Polygon Tool
Menu → Object → Surface → Regular Polygon
TO DRAW A REGULAR POLYGON:
- Activate the Regular Polygon Tool.
- Left-click to create the origin of the Regular Polygon.
- Drag away from the origin and left-click a second time to define the Regular Polygon's diameter.
- Drag the mouse to increase or decrease the number of sides desired. Left-click a third time to finish drawing the Regular Polygon.
PYTHON COMMAND: polygon_reg(label,x0,y0,z0,radius,n_sides)
REGULAR POLYGON PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius | real numeric | project units | - | radius of circumscribing circle |
| side_count | integer numeric | - | - | number of side of regular polygon |
| top_width | real numeric | project units | - | - |
DIALOG PARAMETERS

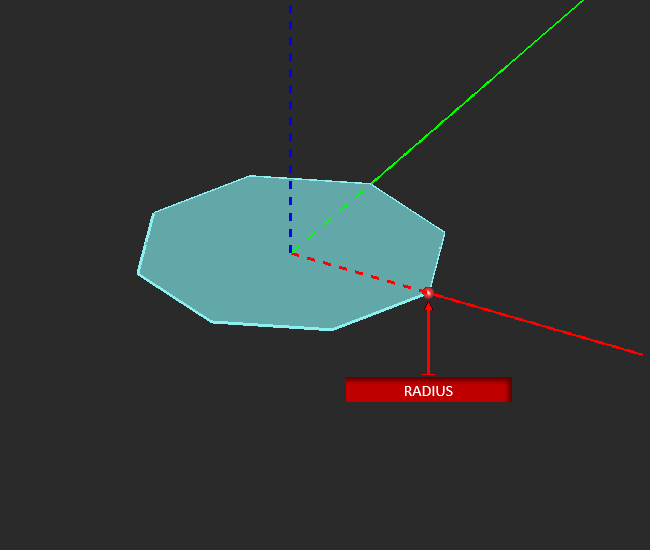

Radius establishes the Regular Polygon's diameter from its LCS origin. Sides establishes the number of equilateral edges.
Spiral Strip Tool
Menu → Object → Surface → Spiral Strip

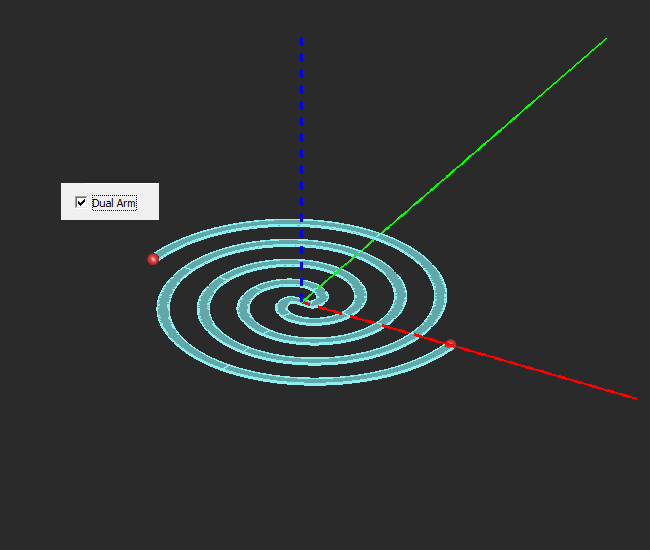

TO DRAW A SPIRAL STRIP:
- Activate the Spiral Strip Tool.
- Left-click to establish the origin of the Spiral Strip's inner-radius.
- Drag away from the origin to expand the inner radius. Left-click a second time to set the inner radius and create the starting point for the outer radius.
- Drag the mouse away from the second point to expand the outer radius (or closer to contract the radius). Left-click a third time to complete the spiral.
PYTHON COMMAND: spiral_strip(label,x0,y0,z0,width,radius_inner,radius_outer,n_turns,spiral_dir,is_dual)
SPIRAL STRIP PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| inner_radius | real numeric | project units | - | - |
| outer_radius | real numeric | project units | - | - |
| strip_width | real numeric | project units | - | - |
| turns | integer numeric | project units | 2 | number of spiral turns |
| ccw | Boolean | - | TRUE | if TRUE, creates counterclockwise right-handedness |
| dual_arm | Boolean | - | FALSE | creates a dual-arm spiral |
| inner_taper | Boolean | - | FALSE | if TRUE, tapers spiral strip from inner end |
| inner_inset | real numeric | project units | 0 | when inner_taper is TRUE, a nonzero value creates inner inset |
| outer_taper | Boolean | - | FALSE | if TRUE, tapers spiral strip from outer end |
| outer_inset | real numeric | project units | 0 | when outer_taper is TRUE, a nonzero value creates outer inset |
| taper_pointing | list: {inward, outward} | - | inward | sets the direction spiral's end tapers point to |
DIALOG PROPERTIES
Inner Radius defines the distance between the spiral's origin and the starting point of each spiral arm. Outer Radius sets the distance each spiral arm will radiate outward from the inner radius. Strip Width of the Spiral Strip can be changed by entering different values. Number of Turns defines the number of spiral revolutions of each arm Counter Clockwise (CCW) flips the clockwise drawing direction of the spiral arms.

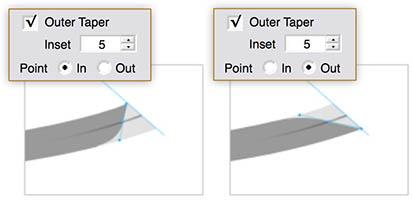

Inner Taper creates a rounded taper at the inner edge of each spiral arm by drawing an exponential curve from a user-defined edge inset point to that edge's opposite corner vertex. Outer Taper creates a rounded taper at the outer edge of each spiral arm by drawing an exponential curve from a user-defined edge inset point to that edge's opposite corner vertex.. Inset Distance establishes an imaginary offset point positioned away from the corner vertex from the inner or outer edge. As seen below, this inset point is constrained to the sidewalls of the spiral arms. Point Inward or Point Outward renders the radial tapers (inward) towards the spiral's center or (outward) away from it.
Note that the Inner Radius setting is not available when the Dual Arm option is enabled.
Dual Arm creates a second arm that mirrors the settings of the parent arm.
Polystrip Tool
Menu → Object → Surface → Polystrip
TO DRAW A POLYSTRIP:
- Activate the Polystrip Tool.
- Click anywhere on the active work plane to create nodes. The Polystrip's contour is rendered as soon as the second node is defined. A Polystrip must have at least three nodes.
- The Polystrip can be closed at any time by either double-clicking on the workplane to establish a closing node, or by pressing the C or ENTER key, which connects the last drawn node with the first. Once closed, the surface area is filled.
PYTHON COMMAND: polystrip(label,(x0,y0,z0),(x1,y1,z1) ... )
EDITING NODES
Each Polystrip node can be selected by clicking on it in the work plane. You can also force nodes to snap to the nearest grid point by activating Snap to Grid (View → Grid Settings).
DIALOG PARAMETERS
Index reports the unique order number of the currently selected node. Active Node shows the X, Y and Z coordinates of the currently selected node.
NURBS Strip Tool
Menu → Object → Surface → NURBS Strip
TO DRAW A NURBS STRIP:
- Activate the NURBS Strip Tool.

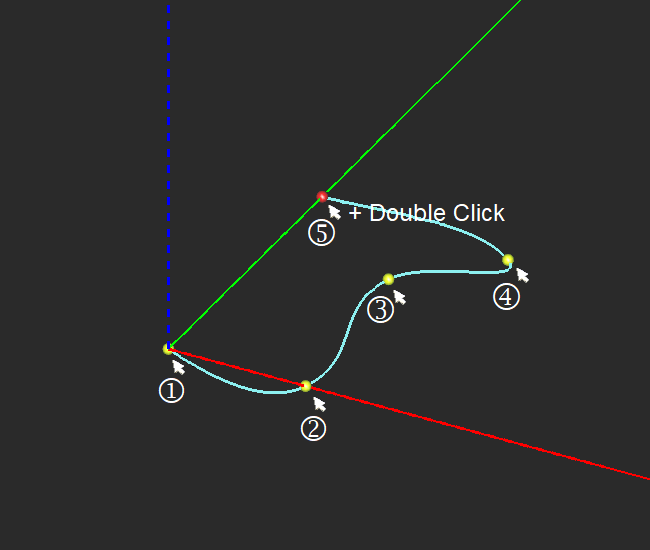

- Click anywhere on the active work plane to create nodes. The NURBs contour is rendered as soon as the second node is defined. A NURBS Strip must have at least three nodes.
- The NURBS Strip can be closed at any time by either double-clicking on the workplane to establish a closing node, or by pressing the C or ENTER key, which connects the last drawn node with the first. Once closed, the surface area is filled.
PYTHON COMMAND: nurbs_strip(label,(x0,y0,z0),(x1,y1,z1) ... )
EDITING NODES
Each NURBS Strip node can be selected by clicking on it in the work plane. You can also force nodes to snap to the nearest grid point by activating Snap to Grid (View → Grid Settings).
DIALOG PARAMETERS
Index reports the unique order number of the currently selected node. Active Node shows the X, Y and Z coordinates of the currently selected node.
Generating Complex Surfaces
Besides EM.CUBE's standard planar objects, i.e. rectangle strip, circle strip, radial strip, ellipse strip, triangle strip, taper strip, regular polygon, spiral strip, polystrip and NURBS strip, you can use Surface Generator
to create a large variety of other surface objects. Practically, any imaginable planar or non-planar surface can be synthesized in EM.CUBE. These include:

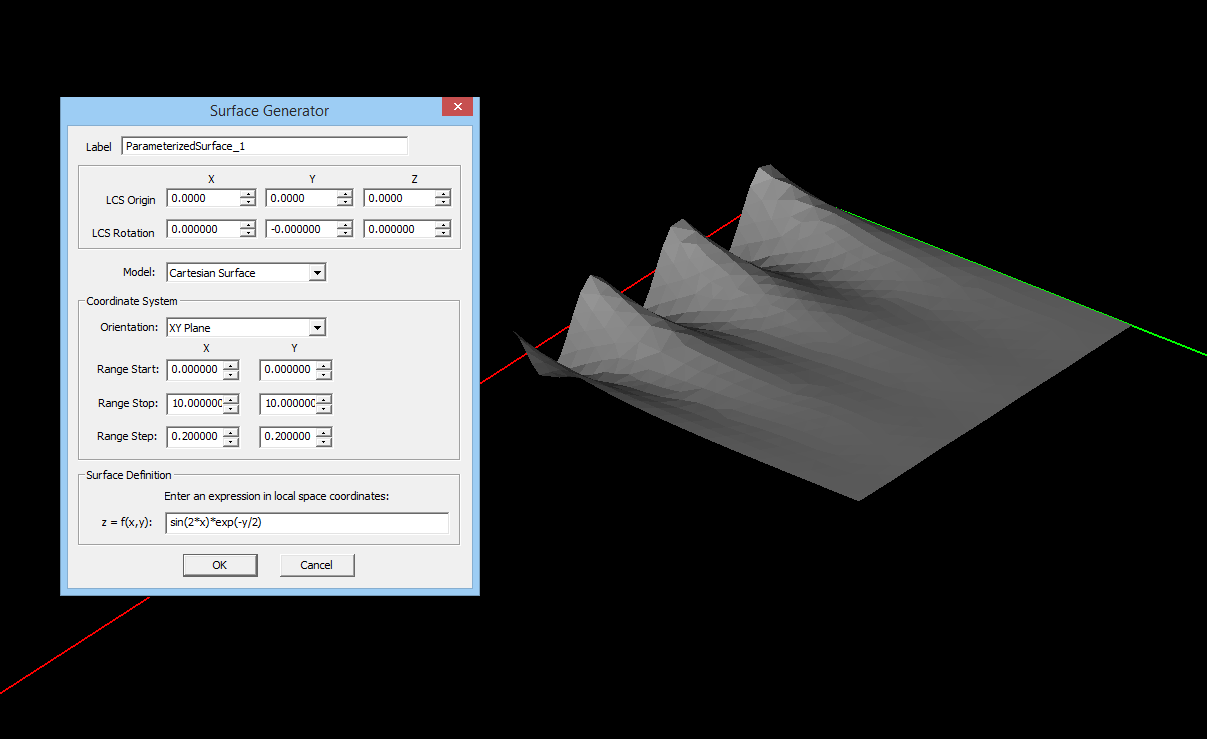

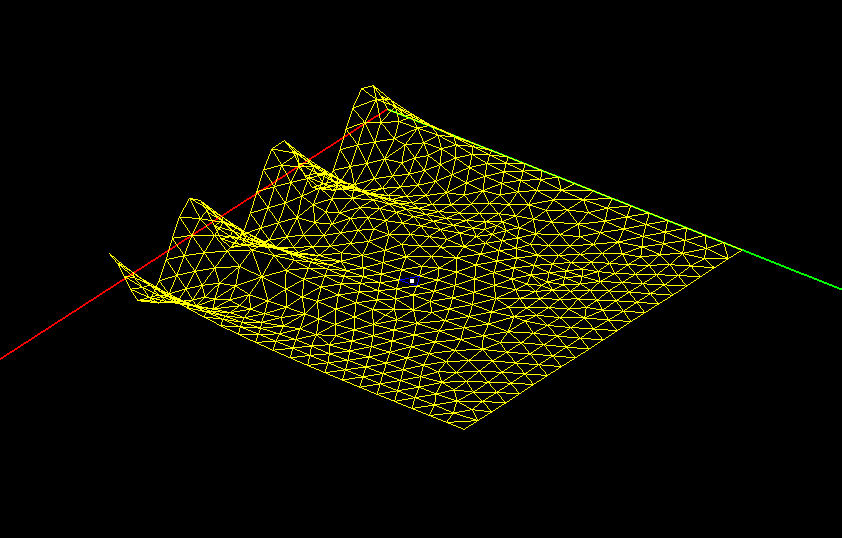

A mathematical surface defined by z = sin(2*x)*exp(-y/2): (left) polymesh version, (right) smooth generic surface version.
- Click the Surface Generator
button of the Object Toolbar to open the Curve Generator Dialog.
- From the Model dropdown list, select the Custom Function, which is the default option. Also specify the Orientation of the surface, which is the XY principal plane by default.
- Specify the range of the surface including Start, Stop and Step values along the two specified dimensions.
- In the "Parameters" section, define the function representing the surface. This has the form z = f(x,y) in XY Plane, x = f(y,z) in YZ Plane or y = f(z,x) in ZX Plane.
- As in the previous case, you can choose between the two Polymesh or Generic Surface options. You can also preview the curve before finalizing its creation.
Curve Objects
Line Tool
Menu → Object → Curve → Line
TO DRAW A LINE:
- Activate the Line Tool.

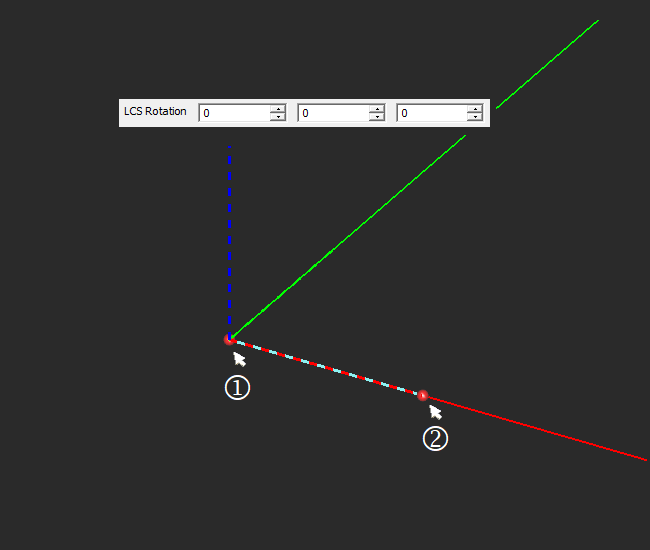

- left click anywhere on the workplane to begin drawing the line.
- left-click a second time to complete the line.
PYTHON COMMAND: line(label,x0,y0,z0,len[,dir])
LINE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| length | real numeric | project units | - | - |
| fix_center | Boolean | - | FALSE | fixes midpoint coordinates |
PERPENDICULAR LINES

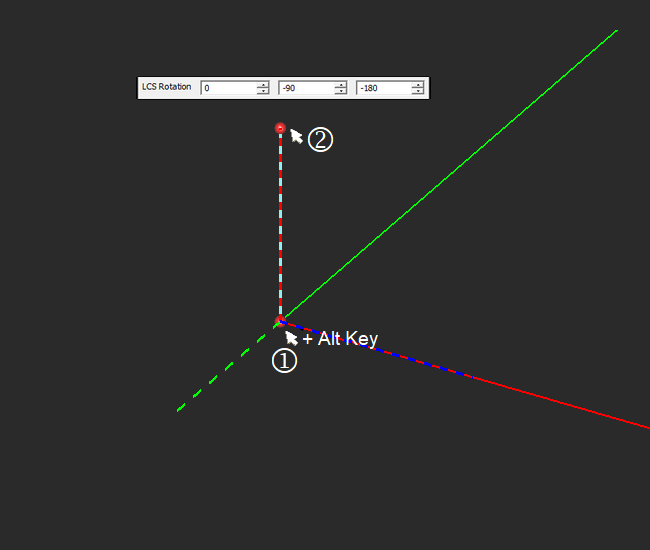

To create a line perpendicular to the work plane, hold down the ALT key while left-clicking to define the second point
DIALOG PARAMETERS
Length establishes the distance from a line's origin and end node. Lock Base anchors the line's LCS origin to its current location. When Lock Base is enabled, changes to the line's length are added equally to both sides of the line.
Circle Tool
Menu → Object → Curve → Circle

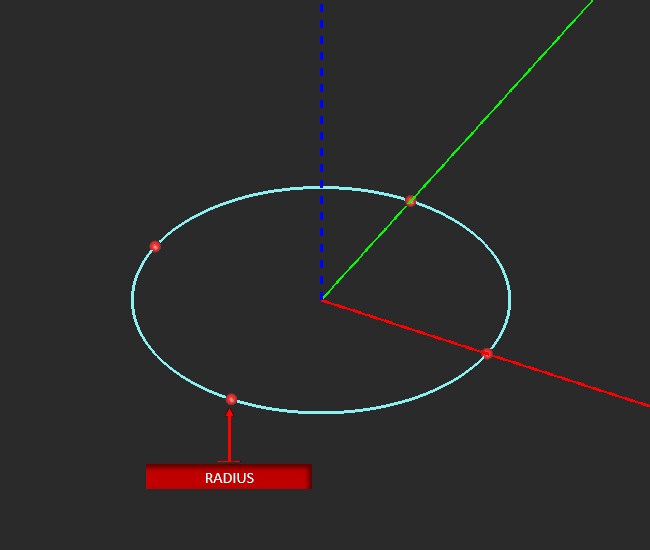

TO DRAW A CIRCLE:
- Activate the Circle Tool.
- Left-click at the desired location on the active grid to establish the origin.
- Drag your mouse away from the origin to set the desired radius.
- Left click a second time to complete the circle.
PYTHON COMMAND: circle(label,x0,y0,z0,radius,start_angle,end_angle)
CIRCLE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| radius | real numeric | project units | - | - |
| start_angle | real numeric | degrees | 0 | start azimuth angle |
| end_angle | real numeric | degrees | 360 | end azimuth angle |
DIALOG PARAMETERS
Circle Radius establishes the circumference of the circle. Start Angle and End Angle defines the area around the z-axis that will be drawn. The default value for both the Start and End angle parameters is 0.
The X, Y, Z LCS coordinates originate at the center of the circle.
EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles. Edit handles turn blue when the mouse cursor hovers on top of them. This color change indicates that the handle is active. Click and drag on any active handle to reshape the object.
Super-Quadratic Curve Tool
Menu → Object → Curve → Super-quadratic Curve

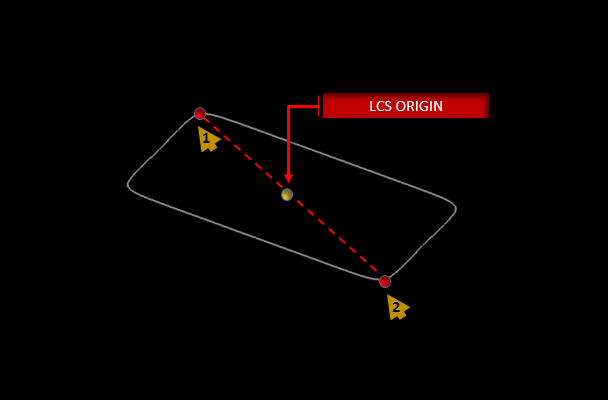

TO DRAW A SUPER-QUADRATIC CURVE:
- Activate the Super-Quadratic Curve Tool.
- Left-click to establish the initial X/Y diameter triangulation point.
- Drag the mouse away from this point to define the desired size.
- Left-click a second time to complete the superquad.
PYTHON COMMAND: superquad(label,x0,y0,z0,diam_x,diam_y,order)
SUPER-QUADRATIC CURVE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| diameter_X | real numeric | project units | - | diameter along X-axis |
| diameter_Y | real numeric | project units | - | diameter along Y-axis |
| order | integer numeric | degrees | 2 | a higher order resembles a rectangle with rounded corners |
| is_rectangle | Boolean | - | FALSE | if TRUE, draws a rectangle |
| fix_center_X | Boolean | - | TRUE | fixes X-coordinate of base |
| fix_center_Y | Boolean | - | TRUE | fixes Y-coordinate of base |

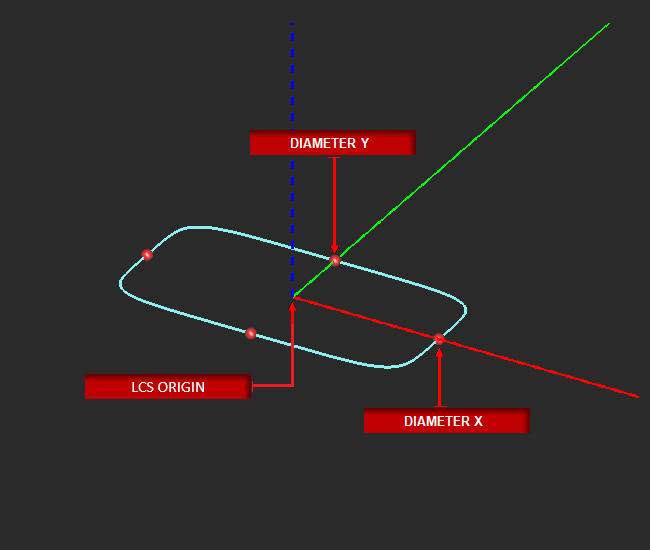

DIALOG PARAMETERS
X Diameter and Y Diameter together establish the perimeter of the super quadratic curve. Lock Base anchors the superquad's LCS origin to its current location. The diagram below illustrates how the Lock Base option controls parameter changes made to the x and y diameter.

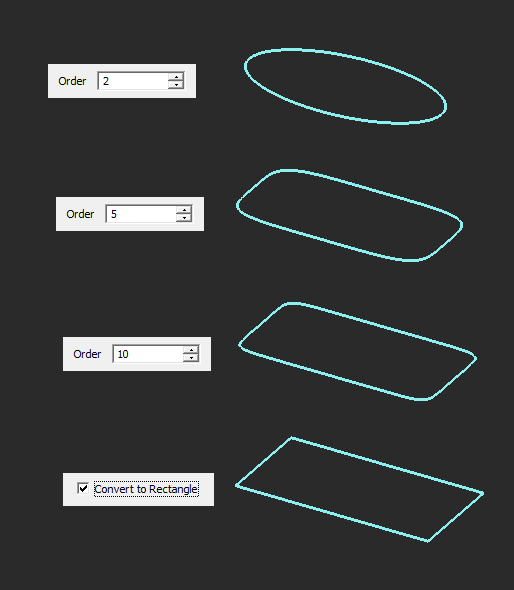

Order changes the corner radius amount. Enter higher values into the Order field to decrease corner radius, lower values to increase the corner radius. By default, the Order value is set to 2. Rectangle creates a rectangular curve (no corner rounding).
DRAWING MODES
You can toggle between vertex, edge or face drawing modes by pressing the B key (after the first point has been established). Side length is determined by triangulating the mouse position relative to the anchor point or centroid. When in vertex draw mode, the first point drawn defines the corner anchor vertex of the superquad. As you drag the mouse away from this anchored vertex, the superquad's boundaries radiate outward. When in edge draw mode, the first point drawn defines the anchored edge of the superquad. As you drag the mouse away from the starting edge, the top and bottom perpendicular sides and the side opposite the anchored edge expand outward in all directions. When in face draw mode, the first point drawn defines the face centroid of the superquad. As you drag the mouse away from the centroid, the superquad's boundaries radiate outward from this centroid.
Base center: x, y, z coordinates are located at the center of superquad.
EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles. Edit handles turn blue when the mouse cursor hovers on top of them. This color change indicates that the handle is active. Click and drag on any active handle to reshape the object.
Parabola Tool
Menu → Object → Curve → Parabola
TO DRAW A PARABOLA:
- Activate the Parabola Tool.
- Left-click to set the Focal Point.
- Drag away from the focal point and left-click a second time to set the desired Offset.
- Drag and left-click a third time to complete the Parabolic Curve.
PYTHON COMMAND: parabola(label,x0,y0,z0,focal_length,axial_length,half_only)
PARABOLA PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| focal_length | real numeric | project units | - | - |
| axial_length | real numeric | project units | - | - |
| aperture | real numeric | degrees | - | is determined automatically by focal and axial lengths or can be set independently |

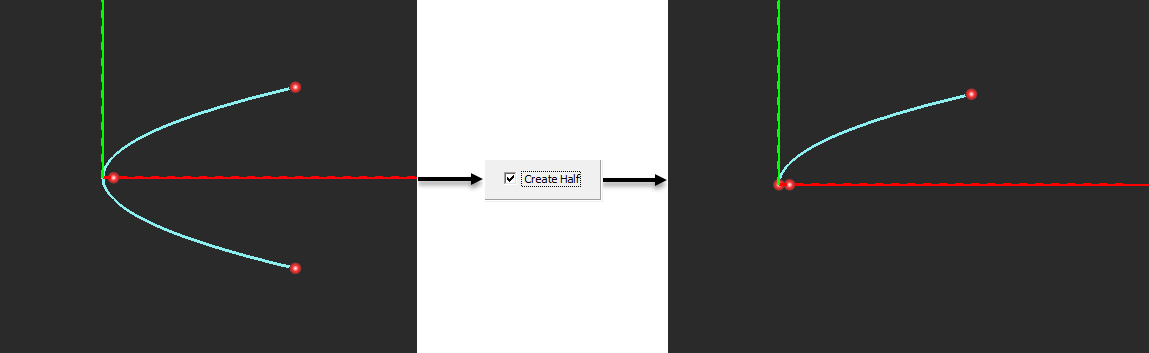

| create_half | Boolean | - | FALSE | if TRUE, draws the left half only |
DIALOG PROPERTIES

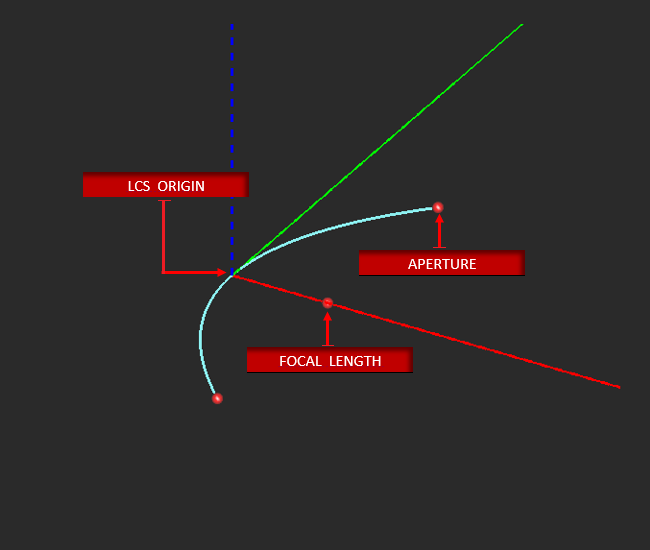

Focal Length, Axial Length, and Aperture adjusts the opening of the parabola. Create Half bisects and removes the bottom half of the parabola. You can revolve the resulting curve to create a parabolic dish.
EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles. Edit handles turn blue when the mouse cursor hovers on top of them. This color change indicates that the handle is active. Click and drag on any active handle to reshape the object.
Hyperbola Tool
Menu → Object → Curve → Hyperbola

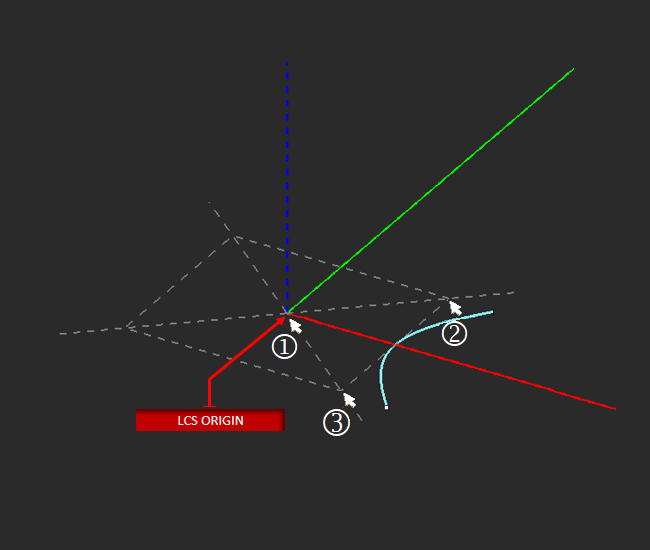

TO DRAW A HYPERBOLA:
- Activate the Hyperbola Tool.
- Left-click to define the X-radius origin. Construction guides will appear to aid in the drawing process.
- Drag the mouse away from the origin to establish the desired X-radius. Left-click a second time.
- To establish the Y-radius and the hyperbola's leg length, drag the mouse to the desired location and left-click to complete the Hyperbola.
PYTHON COMMAND: hyperbola(label,x0,y0,z0,diam_x,diam_y,axial_length,half_only)
HYPERBOLA PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| diameter_X | real numeric | project units | - | diameter along X-axis |
| diameter_Y | real numeric | project units | - | diameter along Y-axis |
| axial_length | real numeric | project units | - | - |
| create_half | Boolean | - | FALSE | if TRUE, draws one half of one branch only |
| negative_branch | - | FALSE | if TRUE, draws the negative branch only |
DIALOG PROPERTIES
X Diameter Y Diameter Axial Length establishes the distance between the start and end points of the hyperbolic curve.

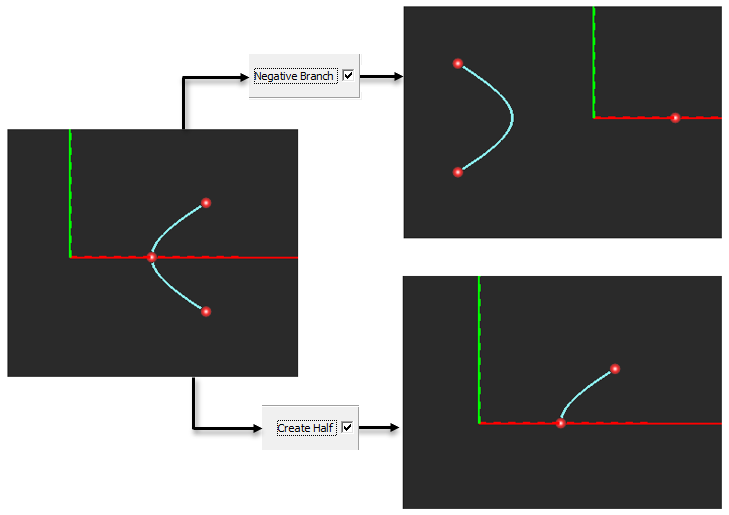

Neg. Branch create a mirrored version of the hyperbolic curve. Create Half bisects and removes the bottom half of the hyperbolic curve. You can revolve the resulting curve to create a hyperbolic dish.
EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles. Edit handles turn blue when the mouse cursor hovers on top of them. This color change indicates that the handle is active. Click and drag on any active handle to reshape the object.
Spiral Curve Tool
Menu → Object → Curve → Spiral
TO DRAW A SPIRAL CURVE:
- Activate the Spiral Curve Tool.
- Left-click to establish the inner-radial origin of the Spiral.
- Drag away from the origin to expands the inner radius (drag inward toward the origin to reduces the inner radius).
- Left-click a second time to set the inner radius and create the anchor point for the outer radius.
- Drag the mouse away from the second point to expand the outer radius or closer to reduce the radius.
- Left-click a third time to complete the spiral.
PYTHON COMMAND: spiral_curve(label,x0,y0,z0,radius_inner,radius_outer,nturns,spiral_dir,is_dual)
SPIRAL CURVE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| inner_radius | real numeric | project units | - | - |
| outer_radius | real numeric | project units | - | - |
| turns | integer numeric | project units | 2 | number of spiral turns |
| ccw | Boolean | - | TRUE | if TRUE, creates counterclockwise right-handedness |
| dual_arm | Boolean | - | FALSE | creates a dual-arm spiral |
DIALOG PROPERTIES

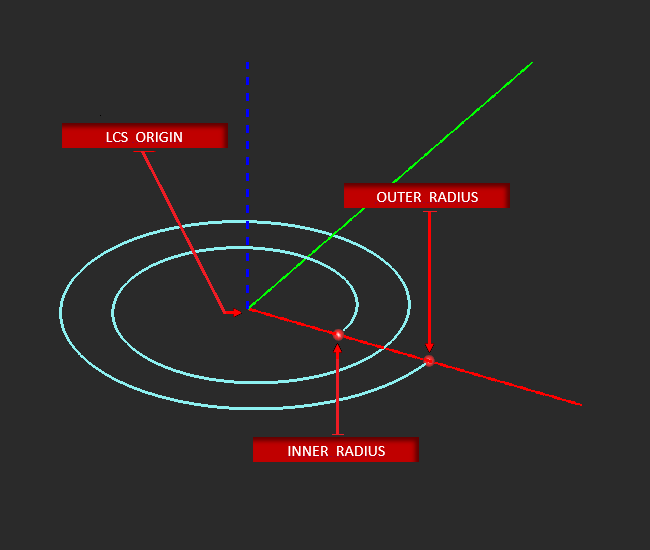

Inner Radius defines the distance between the spiral's origin and the starting point of each spiral arm. Outer Radius sets the distance each spiral arm will radiate outward from the inner radius. Number of Turns defines the number of spiral revolutions of each arm Counter Clockwise (CCW) flips the clockwise drawing direction of the spiral arms.
The X, Y, Z LCS coordinates originate at the center of the spiral.
EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles. Edit handles turn blue when the mouse cursor hovers on top of them. This color change indicates that the handle is active. Click and drag on any active handle to reshape the object.
Helix Tool
Menu → Object → Curve → Helix

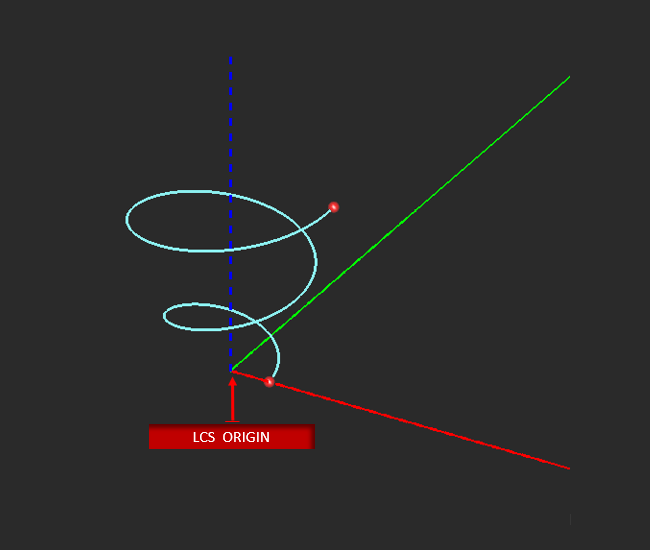

TO DRAW A HELIX:
- Activate the Helix Tool.
- Left-click to establish the origin of the inner-radius.
- Drag away from the origin to expand the inner radius, (toward it to contract the inner radius).
- Left-click a second time to set the inner radius and to establish the anchor point from which you will set the height of the helix.
- Drag your cursor "up" and away from the second anchor point to increase the height of the helix.
- Left-click a third time to complete the helix.
PYTHON COMMAND: helix(label,x0,y0,z0,radius_inner,radius_outer,height,nturns,helix_dir)
HELIX PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| inner_radius | real numeric | project units | same as outer radius | - |
| outer_radius | real numeric | project units | - | - |
| height | real numeric | project units | - | - |
| turns | integer numeric | project units | 2 | number of spiral turns |
| ccw | Boolean | - | TRUE | if TRUE, creates counterclockwise right-handedness |
DIALOG PARAMETERS

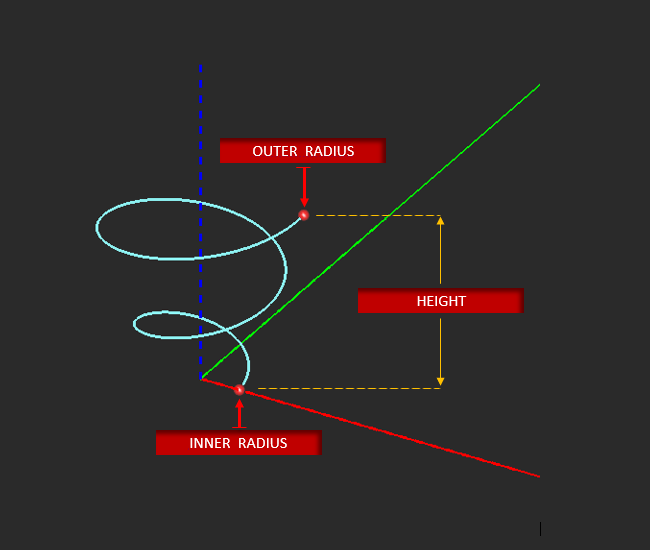

Inner Radius defines the distance between the spiral's origin and the starting point of each spiral arm. Outer Radius sets the distance each spiral arm will radiate outward from the inner radius. Number of Turns defines the number of spiral revolutions of each arm Height establishes the elevation of the outer radius of the helix. Counter Clockwise (CCW) flips the clockwise drawing direction of the spiral arms.
The X, Y, Z LCS coordinates originate at the base center of the helix.
SNAP POINT EDIT HANDLES
Edit handles, available in shape edit mode, allow you to modify common shape attributes using your mouse. The diagram on the left provides a reference of the parameters controlled by the resize (RED) edit handles.
Polyline Tool
Menu → Object → Curve → Polyline

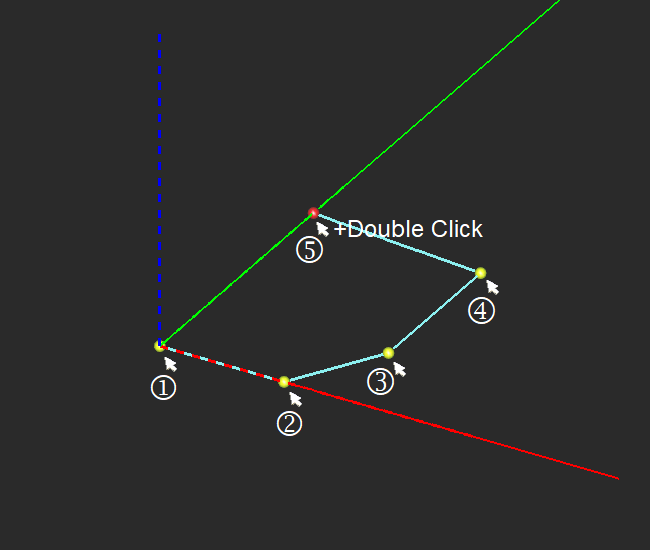

TO DRAW A POLYLINE:
- Activate the Polyline Tool.
- Click anywhere on the active work plane to create nodes. The Polyline's contour is rendered as soon as the second node is defined. A Polyline must have at least two nodes.
- The Polyline can be closed at any time by either double-clicking on the workplane to establish a closing node, or by pressing the C or ENTER key, which connects the last drawn node with the first.
PYTHON COMMAND: polyline(label,(x0,y0,z0),(x1,y1,z1) ... )
EDITING NODES
Each Polyline node can be selected by clicking on it in the work plane. You can also force nodes to snap to the nearest grid point by activating Snap to Grid (View → Grid Settings).
If the polyline shape was originally drawn unclosed, you can place a checkmark in the Close option box to connect the first drawn anchor point with the last drawn anchor point. Closing the "loop" allows you to fill the polyline shape, creating a planar object whose perimeter and surface area matches the drawn polyline's outline.
DIALOG PARAMETERS
Index reports the unique order number of the currently selected node. Active Node shows the X, Y and Z coordinates of the currently selected node.
NURBS Curve Tool
Menu → Object → Curve → NURBS
TO DRAW A NURBS CURVE:
- Activate the NURBS Curve Tool.
- Click anywhere on the active work plane to create nodes. The contour of the NURBs Curve is rendered as soon as the second node is defined. A NURBs Curve must have at least two nodes.
- The NURBs Curve can be closed at any time by either double-clicking on the workplane to establish a closing node, or by pressing the C or ENTER key, which connects the last drawn node with the first.
PYTHON COMMAND: nurbs_curve(label,(x0,y0,z0),(x1,y1,z1) ... )
EDITING NODES
Each NURBs Curve node can be selected by clicking on it in the work plane. You can also force nodes to snap to the nearest grid point by activating Snap to Grid (View → Grid Settings).
If the NURBs Curve shape was originally drawn unclosed, you can place a checkmark in the Close option box to connect the first drawn anchor point with the last drawn anchor point. Closing the "loop" allows you to fill the polyline shape, creating a planar object whose perimeter and surface area matches the drawn polyline's outline.
DIALOG PARAMETERS
Index reports the unique order number of the currently selected node. Active Node shows the X, Y and Z coordinates of the currently selected node.
Generating Complex Curves
Besides EM.CUBE's standard curve objects, i.e. line, circle, super-quadratic curve, parabola, hyperbola, spiral curve and helix, you can use Curve Generator
to create a large variety of other curve objects. Practically, any imaginable curve can be synthesized in EM.CUBE. These include:
- Planar Cartesian curves represented by equation y = f(x).
- Planar polar curves represented by equation r = f(?).
- 3-D parametric curves represented by equations x = x(t), y = y(t), and z = z(t).
Moreover, you can create planar curves on any of the three principal XY, YZ or ZX planes.
- Click the Curve Generator
button of the Object Toolbar or select Menu Object Curve Curve Generator to open the Curve Generator Dialog.
- Select one of the three curve types Cartesian, Polar or Parametric. For the Cartesian type, also specify the Orientation, which is the XY principal plane by default.
- Specify the range of the curve. This includes Start, Stop and Step values. For polar curves, the angles are expressed in radians.
- In the "Parameters" section, define the function representing the curve. For the Cartesian type, this has the form y = f(x) in XY Plane, z = f(y) in YZ Plane or x = f(z) in ZX Plane. For polar curves, the function is defined as r = f(t), where t and r represent the angle and radius, respectively. For parametric curves, t is the parameter, and the x, y and z coordinates are all expressed as three functions of t.
- Curve Generator offers two options for the curve to be generated: Polyline or NURBS Curve. The latter is the default option. Change Curve Type if you want to create a polyline.
- Before you create the curve and add it to the Navigation Tree, you have an opportunity to preview it. To do so, click the Preview button of the dialog. A yellow ghost of the curve appears in the Project Workspace. You can change the range or modify the function at this time. Once you are satisfied with the generated curve, click the Create to finalize its creation and add it to the list of object on the Navigation Tree.
Special Objects
Point Tool
Menu → Object → Special → Point
TO DRAW A POINT:
- Activate the Point Tool.
- Left-click to establish the location of the point.
PYTHON COMMAND: point(label,x0,y0,z0)
POINT PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinate of point |
| LCS_Y | real numeric | project units | - | Y-coordinate of point |
| LCS_Z | real numeric | project units | - | Z-coordinate of point |
Fractal Tree Tool
Menu → Object → Special → Fractal Tree
TO DRAW A FRACTAL TREE:
- Activate the Fractal Tree Tool.
- Left-click to establish the location of the fractal tree. A default horizontal fractal tree appears in the project workspace.
- The Fractal Dialog opens up on the lower right corner of the screen. You have two options: fractal tree with linear or cylindrical branches. You can also set the number of fractal levels.
- Make sure to click the OK button of the dialog to complete the fractal construction.
PYTHON COMMAND: fractal_tree(label,x0,y0,z0,key_type,key_size,n_level,sep_angle,n_gen,prune_factor,thickness,thick_factor)
FRACTAL TREE PARAMETERS
| Parameter Name | Value Type | Units | Default Value | Notes |
|---|---|---|---|---|
| LCS_X | real numeric | project units | - | X-coordinates of base |
| LCS_Y | real numeric | project units | - | Y-coordinates of base |
| LCS_Z | real numeric | project units | - | Z-coordinates of base |
| rot_X | real numeric | degrees | - | local rotation about X-axis |
| rot_Y | real numeric | degrees | - | local rotation about Y-axis |
| rot_Z | real numeric | degrees | - | local rotation about Z-axis |
| key_object_type | Line or Cylinder | - | Line | - |
| level_count | integer numeric | - | 3 | number of fractal levels |
| separation_angle | real numeric | degrees | 30 | angle between two adjacent branches |
| generation_factor | integer numeric | - | 3 | Number of new branches generated at each node |
| prune_factor | real numeric | - | 0 | A number between 0 and 1 representing the percentage of branches randomly deleted |
| thickness | real numeric | project units | 1 | diameter of branches |
| thickness_factor | real numeric | - | 0.2 | A number between 0 and 1 representing the percentage of tapering of each cylindrical branch upward |
