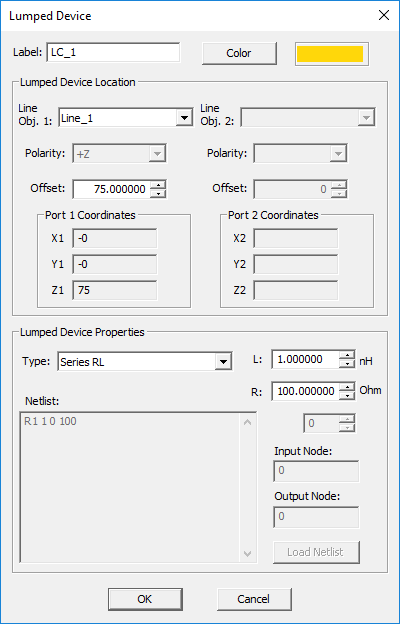

[[Image:Lumped Ser_RL.png|thumb|left|480px|The lumped device dialog with the series RL device type selected.]]
</td>
</tr>
</table>
Â
== Slot Trace ==
Â
ICON: [[File:pmc_group_icon.png]]
Â
MODULE: [[EM.Picasso]]
Â
FUNCTION: Defines a slot trace object group on an infinite PEC ground plane
Â
TO DEFINE A SLOT TRACE GROUP:
Â
# Right-click on the '''Slot Traces''' item in the navigation tree.
# Select '''Insert New Slot Trace...''' to open up the New Slot Trace dialog.
# The only properties of a slot trace group you can modify is its color and texture.
# Click the <b>OK</b> button of the dialog to return to the project workspace.
Â
Â
PYTHON COMMAND: slot_group(label)
Â
Â
SLOT TRACE PARAMETERS
{| class="wikitable"
|-
! scope="col"| Parameter Name
! scope="col"| Value Type
! scope="col"| Units
! scope="col"| Default Value
! scope="col"| Notes
|-
! scope="row" | Locked mesh density
| Real Numeric
| cells/effective wavelength
| 30
| Only if "Lock Mesh" enabled
|}
Â
<table>
<tr>
<td> [[Image:MATER MAN18.png|thumb|left|480px|The slot trace dialog.]] </td>
</tr>
</table>
