==Running a Uniform Frequency Sweep==

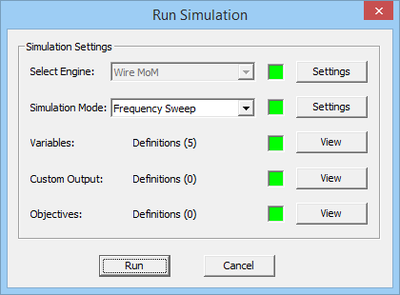

[[Image:WMOM13MOMTUT3 21.png|thumb|350px400px|The MoM3D Module's Run dialog with Wire MoM solver and Frequency Sweep selected.]]
To examine the frequency response of the dipole antenna, that is its port characteristics as a functions of frequency, you need to perform a frequency sweep of our structure.
Click the <b>Run</b> [[Image:fdtd_runb.png]] Button of the Simulate Toolbar to open up the Simultion Run Dialog. Select the "Frequency Sweep" option from the drop-down list labeled "Simulation Mode". <u>Make sure you have selected the "Wire MoM" option for "Engine Type"</u>. Then, click on the <b>Settings</b> button next to the Simulation Mode drop-down list. This opens up the Frequency Settings dialog.
<tr>
<td>
[[Image:MOMTUT3 15.png|thumb|350px400px|The Frequency Sweep Settings dialog with the Uniform Sweep option selected.]]
</td>
</tr>
<tr>
<td>
[[Image:MOMTUT3 16.png|thumb|350px500px|The Frequency Sweep Settings dialog with the Uniform Sweep option selected.]]
</td>
</tr>
<tr>
<td>
[[Image:MOMTUT3 17.png|thumb|350px500px|The Frequency Sweep Settings dialog with the Uniform Sweep option selected.]]
</td>
</tr>
