In many cases, your planar structure's traces or embedded objects are entirely enclosed inside the periodic unit cell and do not touch the boundary of the unit cell. EM.Picasso allows you to define periodic structures whose unit cells are interconnected. The interconnectivity applies only to PEC, PMC and conductive sheet traces, and embedded object sets are excluded. Your objects cannot cross the periodic domain. In other words, the neighboring unit cells cannot overlap one another. However, you can arrange objects with linear edges such that one or more flat edges line up with the domain's bounding box. In such cases, EM.Picasso's planar MoM mesh generator will take into account the continuity of the currents across the adjacent connected unit cells and will create the connection basis functions at the right and top boundaries of the unit cell. It is clear that due to periodicity, the basis functions do not need to be extended at the left or bottom boundaries of the unit cell. As an example, consider a periodic metallic screen as shown in the figure on the right. The unit cell of this structure can be defined as a rectangular aperture in a PEC ground plane (marked as Unit Cell 1). In this case, the rectangle object is defined as a slot trace. Alternatively, you can define a unit cell in the form of a microstrip cross on a metal trace. In the latter case, however, the microstrip cross should extend across the unit cell and connect to the crosses in the neighboring cells in order to provide current continuity.
[[Image:PMOM98.png|thumb|600px|Changing the number of Floquet modes from the Planar MoM Engine Settings dialog.]]
=== Running a Periodic MoM Analysis ===
[[Image:PMOM98.png|thumb|left|600px|Changing the number of Floquet modes from the Planar MoM Engine Settings dialog.]]
=== Modeling Periodic Phased Arrays ===
Note that you have to define a finite-sized array factor in the Radiation Pattern dialog. You do this in the '''Impose Array Factor''' section of this dialog. In the case of a periodic structure, when you define a new far field item in the Navigation Tree, the values of '''Element Spacing''' along the X and Y directions are automatically set equal to the value of '''Periodic Lattice Spacing''' along those directions. You have to set the '''Number of Elements''' along the X and Y directions, which are both equal to one initially, representing a single radiator. If you forget to define an array factor, the radiation pattern of the unit cell structure will be displayed, which does not show beam scanning.

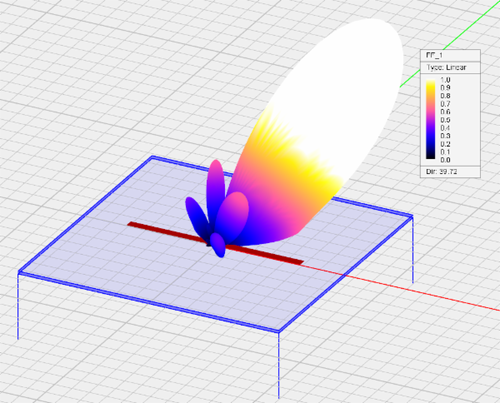

<table><tr><td> [[FileImage:PMOM100.png]]Â Figure 1: |500px|Setting the periodic scan angles in [[Planar Module]]EM.Picasso's Gap Source dialog.]] </td>Â <td> [[FileImage:pmom_per9_tn.png]]Â Figure 2: |500px|The 3D radiation pattern of a beam-steered periodic printed dipole array.]] </td></tr></table>
=== Exciting Periodic Structures Using Plane Waves ===
